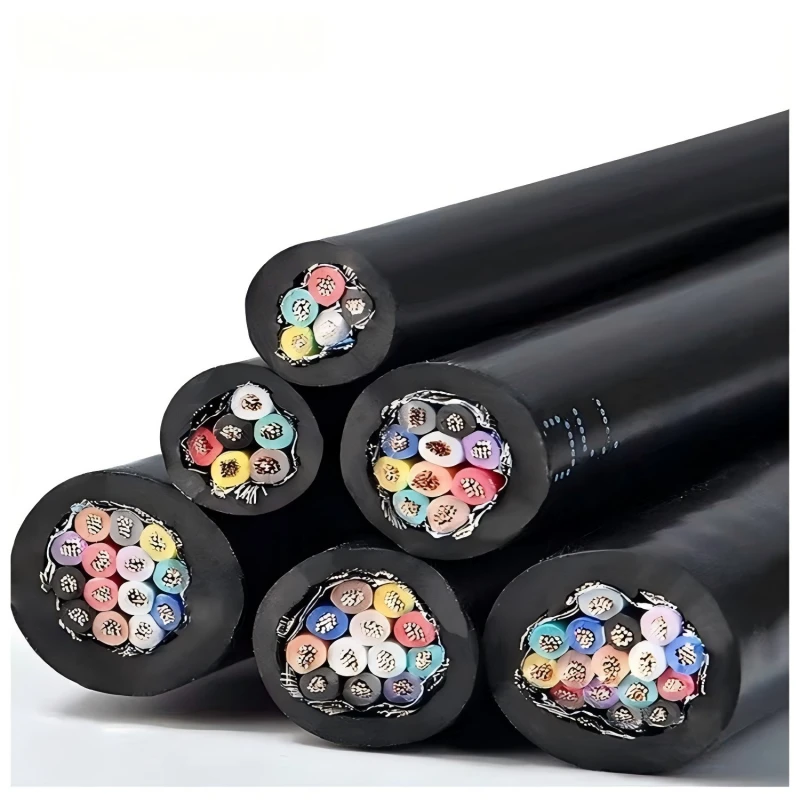

Copper PVC Power Cables (0.6/1 kV) are heavy-duty electrical conductors encased in polyvinyl chloride insulation and jacketing to transmit low-voltage electrical power from distribution sources to commercial and industrial end-use equipment.
Technical Specifications
|
Item |
Specification |
|
Rated Voltage |
0.6/1 kV AC |
|
Conductor Material |
≥99.9% electrolytic copper |
|
Conductor Class |
IEC 60228 Class 1 / Class 2 |
|
Conductor Size |
1.5–630 mm² |
|
Core Options |
1–5 Core, 3+1, 4+1 |
|
Insulation |
PVC Type TI1 / Type A |
|
Sheath |
PVC jacket, moisture/UV/oil resistant |
|
Flame Performance |
IEC 60332-1 |
Product Parameters
|
Item |
Specification |
|
Operating Temperature |
≤70°C |
|
Short Circuit Temperature |
≤160°C (≤5s) |
|
Dielectric Test |
3.5 kV AC / 5 min |
|
Bending Radius |
Single-core ≥15×OD; Multi-core ≥10×OD |
|
Installation |
Direct burial, ducts, conduits, cable trays |
|
Ambient Temperature |
-15°C to +70°C |
|
Mechanical Protection |
Abrasion & moisture resistant |
|
Armor Options |
SWA / STA / AWA available |
Industrial Applications
Manufacturing Lines: Powers continuous-duty motor control centers, heavy stamping presses, and plant floors subject to constant vibration.
Underground Ducts: Built for direct burial, flooded cable trenches, and concrete duct banks in thermal power sub-stations.
Chemical & Wastewater Facilities: Operates continuously in up to 98% relative humidity and ambient exposure to mild acid, alkaline, and H₂S fumes.
HVAC & High-Rise Infrastructure: Supplies primary low-voltage distribution boards, central chiller plants, and traction elevators needing sustained current loads.
Customization & OEM Solutions
Custom PVC insulation and sheath coloring.
Flame retardant (IEC 60332-1/3), UV-resistant (UL 1581), anti-termite, or low-smoke compound options.
Inkjet or laser printing of sequential meter marks, PO numbers, project codes, and custom brand logos.
Single-core AC cables with non-magnetic Aluminum Wire Armor (AWA); multi-core cables with Galvanized Steel Wire Armor (SWA).
Testing & QC
Conductor Resistance Verification: 100% DC resistance testing at 20°C per IEC 60228 on all copper wires before extrusion.
High-Voltage Spark & Dielectric Testing: Continuous line spark inspection followed by a 3.5kV AC 5-minute voltage withstand test per drum.
Raw Material Traceability: Every batch linked to mill test certificates for raw copper rods and compound melt-index logs.
Third-Party FAT Support: Full facility access for pre-shipment Factory Acceptance Testing by SGS, TÜV, or Intertek inspectors.
Ordering Information
MOQ: Starts at 3,000 meters per cross-section size; mixed-size project containers negotiable.
Production Lead Time: 15 to 20 business days following deposit confirmation and technical drawing approval.
Monthly Output Capacity: Sustained extrusion capacity of 1,200 km per month across automated multi-wire stranding lines.
Export Documentation: Complete sets including Form E / CO Certificate of Origin, EN 10204 3.1 Mill Test Certificates, and detailed packing lists.
Warranty & Sample Policy
Complimentary Sample Policy: Free 1-meter cable samples supplied for lab testing via client courier accounts or freight collect.
Engineering Support: Certified engineers offer voltage-drop calculations, current-carrying capacity checks, and bending-radius guidance.
Operational Warranty: Backed by a 12-month operational warranty against manufacturing defects, effective from the B/L date.
